136RE rail, a very popular section of rail, is a heavy rail mainly used in mining tracks. It is produced according to the 136lb rail standard set by AREMA (American Railway Engineering And Maintenance Of Way Association). If you are looking for a lighter section of rail, 115RE rail is recommended.
Due to the high grade of hardness, strength, and wear resistance, 136re rail is an optimal choice for heavy haul lines. It is widely used in the American market which has large demands of heavy axle load and long operating mileage.
136RE rail, a very popular section of rail, is a heavy rail mainly used in mining tracks. It is produced according to the 136lb rail standard set by AREMA (American Railway Engineering And Maintenance Of Way Association). If you are looking for a lighter section of rail, 115RE rail is recommended.
Due to the high grade of hardness, strength, and wear resistance, 136re rail is an optimal choice for heavy haul lines. It is widely used in the American market which has large demands of heavy axle load and long operating mileage.

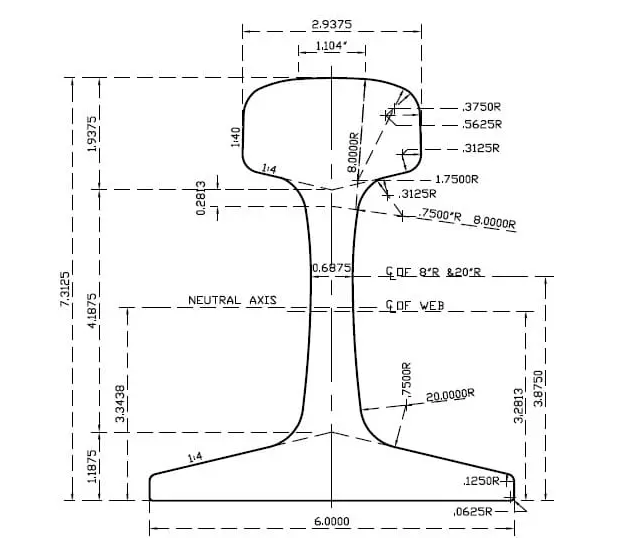

| Rail type | Head mm | Height mm | Base mm | Web mm | Weight Kg/m | material | length |
|---|---|---|---|---|---|---|---|
| 136RE | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 | 900A/1100 | 12-25 |
| Rail Type: | 136 LB RAIL(TR68) |
|---|---|
| Nominal Weight(lbs/yd) | 136 |
| Standard Length | 39′, 80′ |
| Standard Drilling: | 3-1/2”×6” or 3-1/2”×6”×6” with 1-1/4” dia. holes |
| Rail Joint Length: | 24” or 36” |
| Rail Joint Weight: | 4-hole joint: 70 lbs/pr with hardware: 79 lbs/pr 6-hole joint: 117 lbs/pr with hardware: 130 lbs/pr |
| Rail Bolt: | 1”×6” |
Complete supply of railway products including railroad rails and other track materials.
World-renowned for its expertise in providing top-ranking services.
Sufficient inventory for railroad tracks and rail fasteners of all standards.
The factory price saves your investment.
Fast delivery near the port.
